Crawler V3, field-ready.
Compact (320 × 230 × 175 mm), 3.7 kg, 8-hour battery. 4×52 LED system, 8K 360° camera + front camera, NVIDIA Jetson Orin Nano compute. CE marking in progress.
Wind Robotics · Aalborg / Copenhagen
Internal blade
inspection, reinvented.
The Crawler V3 inspects wind turbine blades from the inside — 8K 360° vision, browser-driven, fully offline. Compatible with all major turbine manufacturers.
vision
8K · 360°
on-device stitched
weight
3.7 kg
320 × 230 × 175 mm
battery
8 hrs
full inspection day
lead time
~12 wk
from order confirmation
8K · 360°
3.7 kg · offline

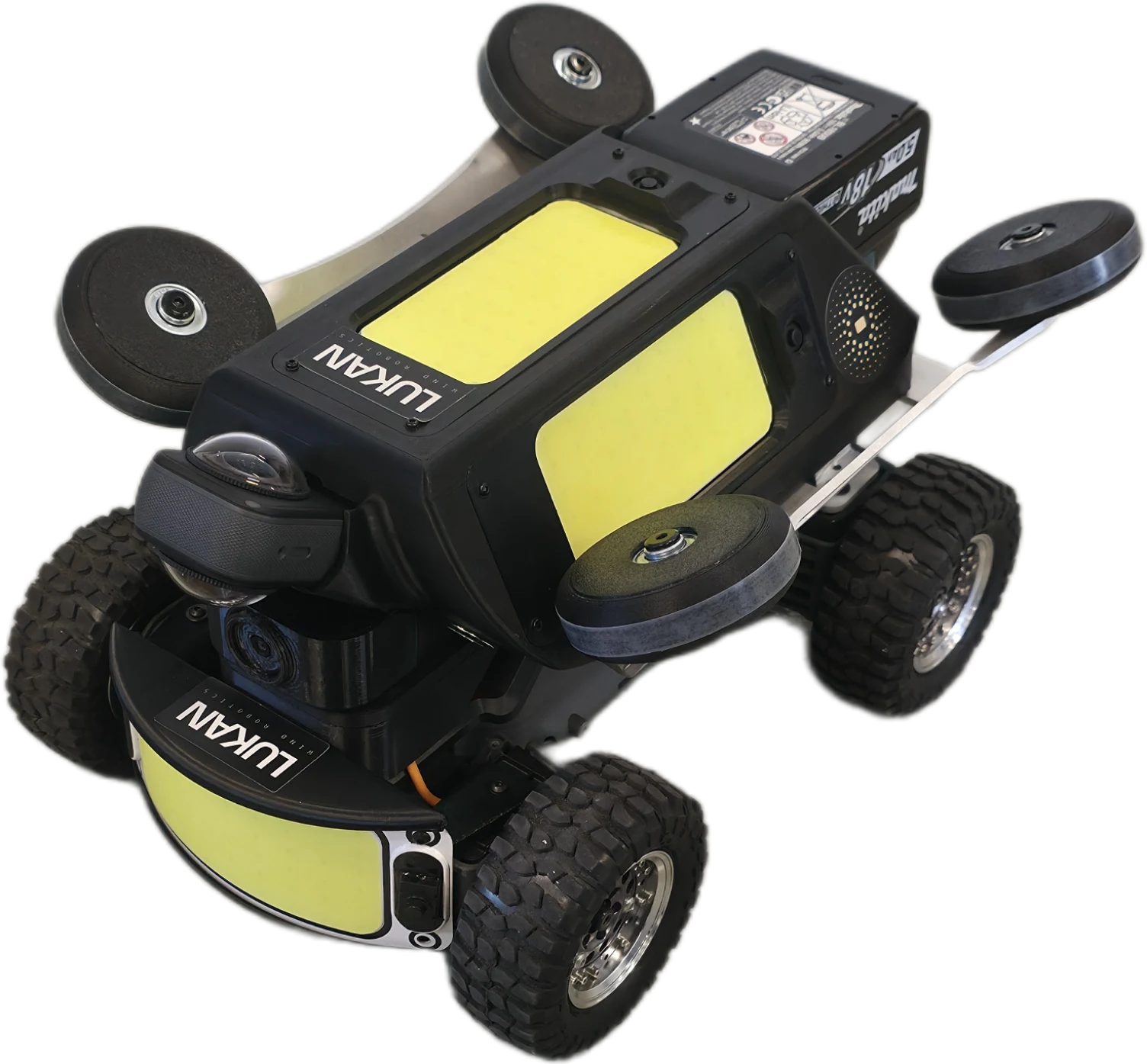

01 · The form factor
320 × 230 × 175 mm. 3.7 kg.
Compact enough to slip through standard blade access. Compatible with all major turbine manufacturers. Battery-powered, single-person carry.

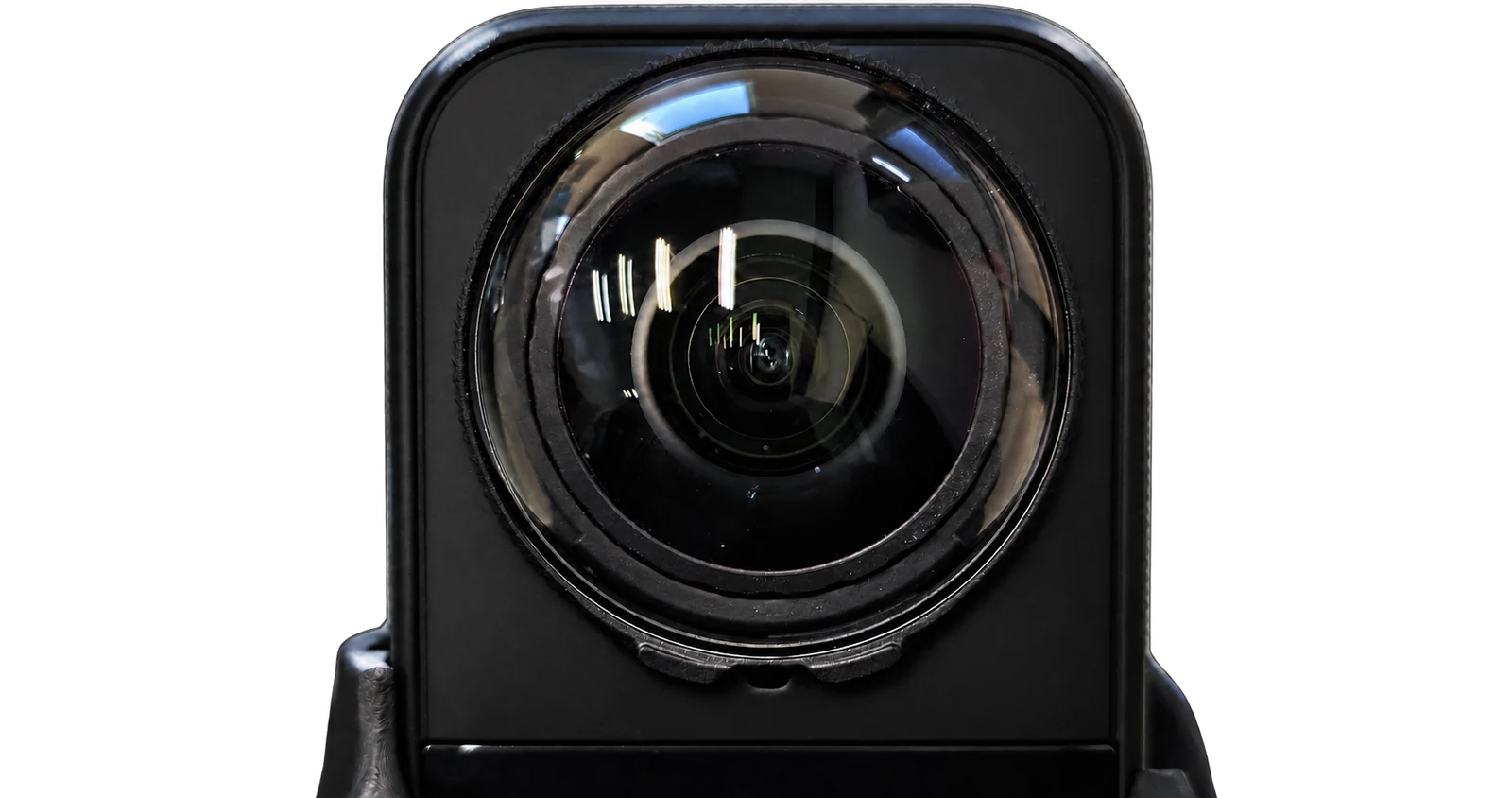

02 · The capture
8K 360° vision, 4K stitched output.
An 8K panoramic camera plus a front camera for navigation. 3840×1920 equirectangular MP4 at 30 fps — stitched on-device, no post-processing needed.
03 · The autonomy
Offline by design.
116 GB of on-board NVMe and an NVIDIA Jetson Orin Nano. No internet, no cloud dependency, no data leaving the site. Sovereignty is the default.
04 · The cockpit
Any browser. Any device.
No apps, no drivers, no IT approvals. Drive over Wi-Fi (120 m range) from a laptop, tablet, or gamepad. Live 360° preview the whole way through.
What it is
One robot, one cable-free workflow, one inspector with a browser.

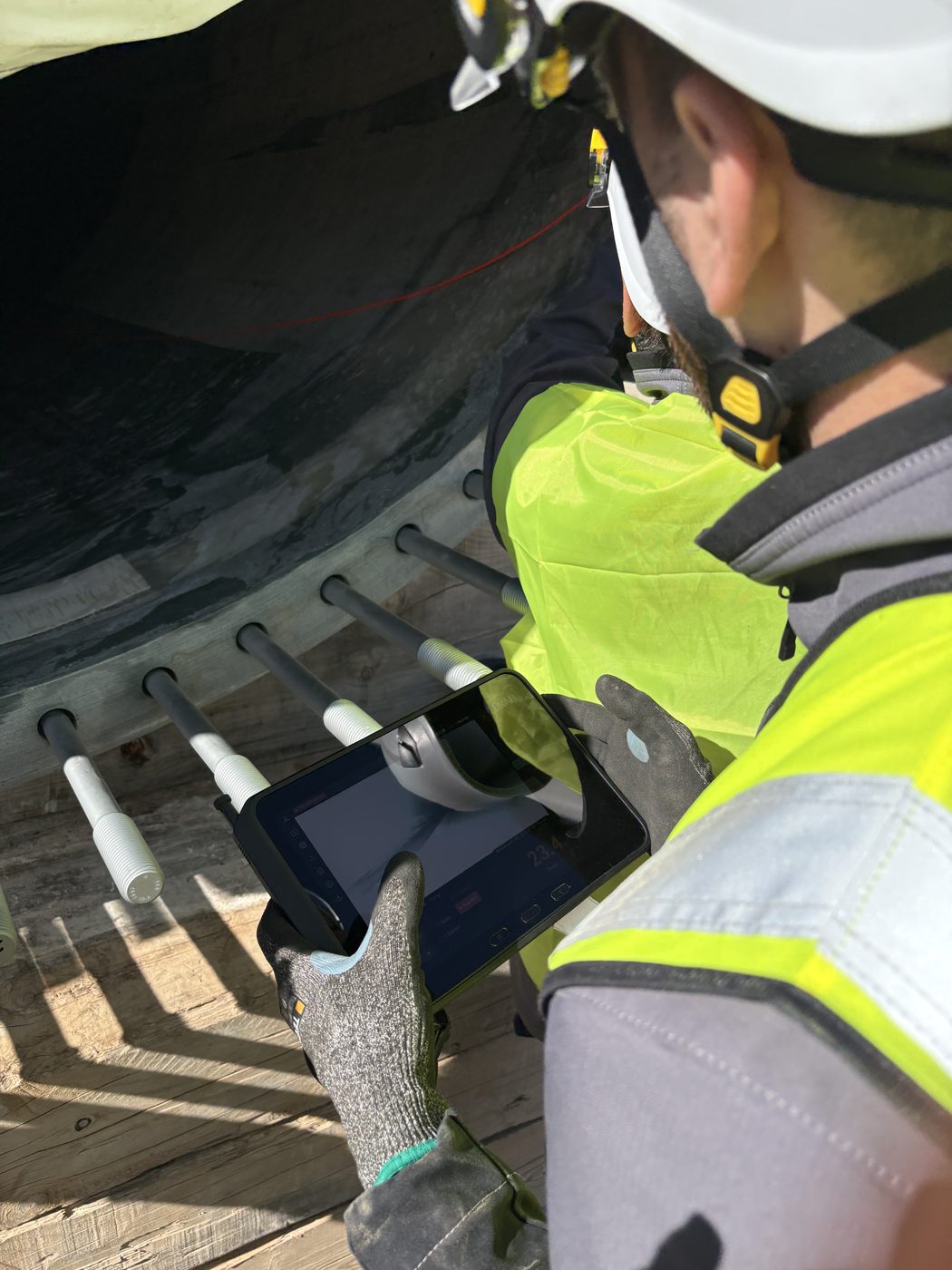

The operator interface
Drive from any browser.
No apps, no drivers, no IT approvals. 120 m Wi-Fi range, live 360° preview, gamepad-friendly. Tailscale VPN for remote diagnostics and OTA updates.
The outcome
Findings, traceable to the frame.
116 GB on-board NVMe with structured JSON metadata (GPS, timestamps, inspection parameters). Built-in viewer, bulk ZIP export, optional video analysis service at €90 per rotor.
Why internal matters

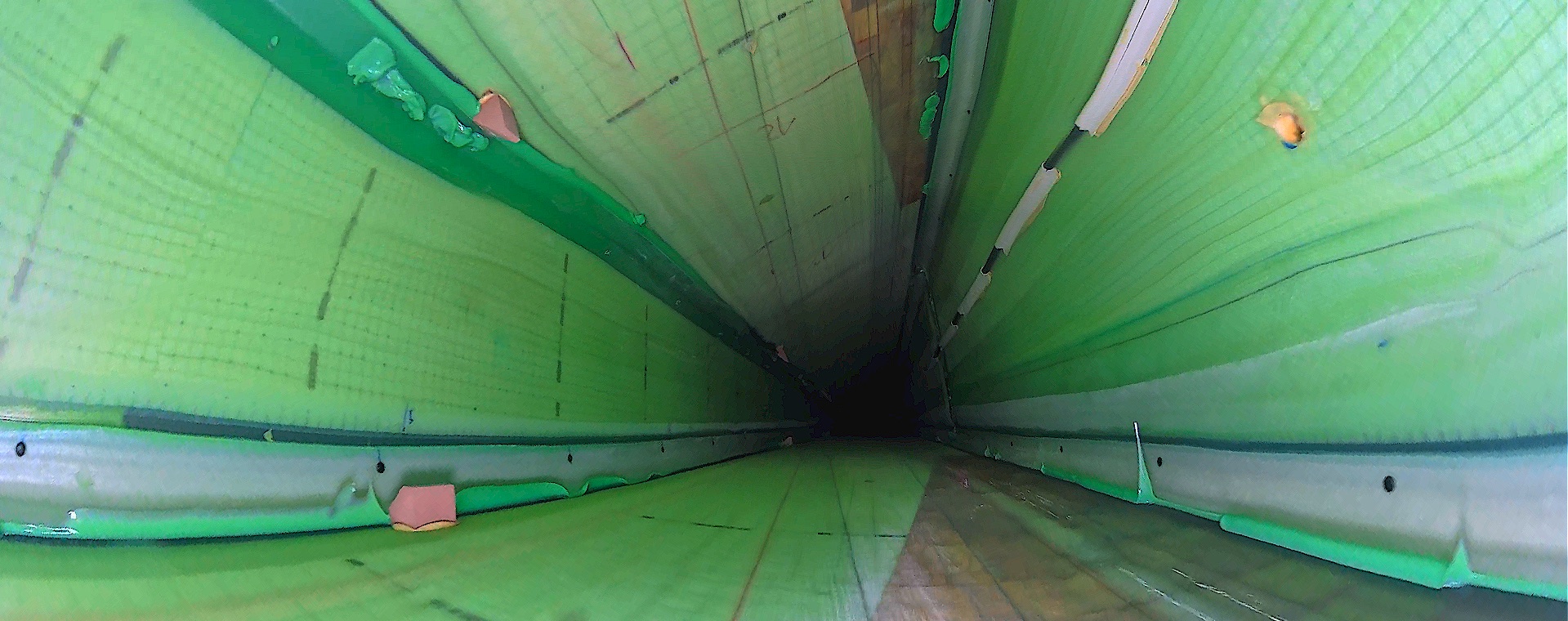

External inspection sees the surface. The damage that matters lives inside.
Drones and external crews can only see the outside of a blade. But the failures that take a turbine down — spar-cap delamination, shear-web cracks, lightning-strike residue in the chambers — live on the inside. Lukan goes where external methods can't.

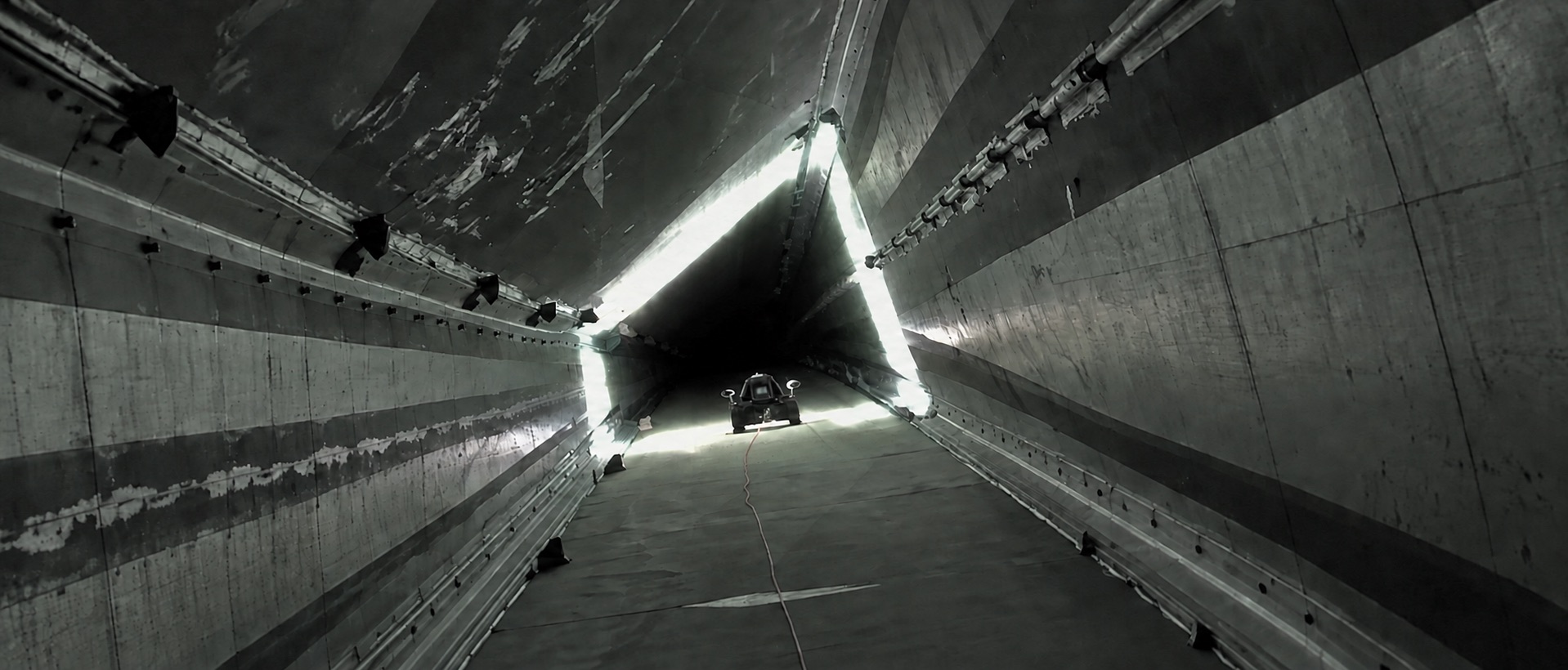

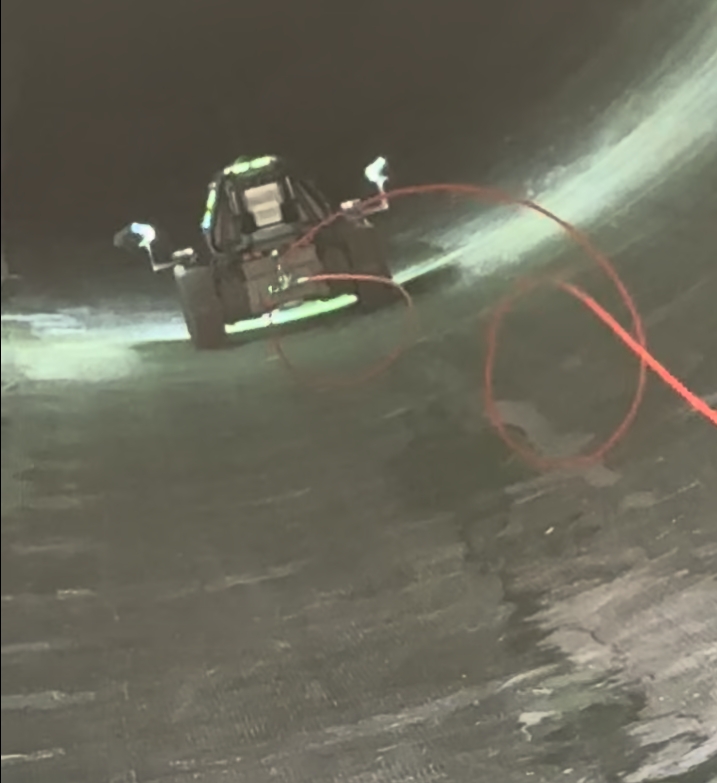

Inside an inspection day
A non-destructive internal inspection completed in a single window — no weather constraints once the crawler is in.
No technicians at height
The crawler does the climb. Your team operates from the ground via any browser.
Fully offline
No signal, no cloud, no data leaving the site. 116 GB on-board NVMe keeps every chamber recorded locally.
Get in touch
Have blades to inspect? Or a fleet to support?
Whether you operate the turbines, service them, or invest in the companies that do — we'd love to talk.
